304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record

چین SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED گواهینامه ها
چین SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED گواهینامه ها
محصولات با کیفیت خوب، قیمت رقابتی و خدمات با کیفیت بالا.

—— الکس وونگ در فیلیپین

گلدانتل یک تامین کننده طلا است ، برای انجام خرید در زمان زیادی صرفه جویی کنید!

—— آصف خان در بحرین

چرخ چرخ شناسايي صورت مستاجران را تحت تاثیر قرار داد. با کارت های دسترسی به طور یکپارچه هماهنگ شد. مهندسان حتی در طول عید کار کردند.

—— احمد الفارسی در امارات متحده عربی

دروازه های دقیق با ربات های مونتاژ هماهنگ می شوند دروازه های چرخ دار آلمانی، سرعت چینی

—— کلارا مولر در آلمانی

سلام ، شارلین ، ما محموله را دریافت کرده ایم! مهندس ما موانع را آزمایش کرده است ، همه آنها بسیار خوب کار می کنند! حالا ، من می خواهم سفارش جدیدی ایجاد کنم!

—— مایکل فوسکو در ایالات متحده

چت IM آنلاین در حال حاضر

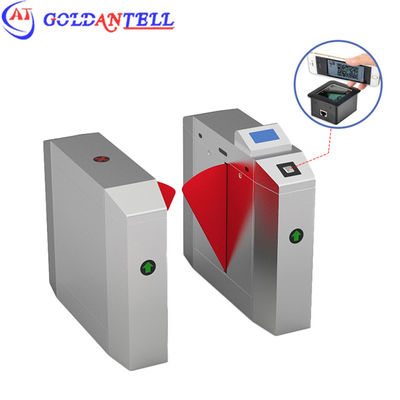

304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record

304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record

تصویر بزرگ :  304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record

جزئیات محصول:
محل منبع: گوانگدونگ ، چین
نام تجاری: Goldantell
شماره مدل: GAT-205
پرداخت:
مقدار حداقل تعداد سفارش: 20
قیمت: $517
توضیحات محصول جزئیات
زمان باز مانع: 0.2 ثانیه رابط ارتباطی: RS-232 ، RS485
جهت عملیاتی: دو راه موتوری: موتوری
سطح حفاظت: IP54 منبع تغذیه: 110 ~ 240 ولت ، 50/60 هرتز
دمای کار: -25℃ ~ +70℃ سرعت پاس: ۴۰ نفر/دقیقه
مادی: 304 فولاد ضد زنگ اندازه: 1200*280*1000 میلی متر
وزن ناخالص: 65 کیلوگرم زمان افتتاح فلپ: در مدت 1 ثانیه
موتوری: موتور DC 24V Bruch عرض عبور: 60 سانتی متر
زمان تنظیم مجدد: پیش فرض 10s
برجسته کردن:

Brushed Motor Flap Turnstile,LED Light Color Optional Security Turnstile Gate,Attendance Record Access Control Turnstile

,

LED Light Color Optional Security Turnstile Gate

,

Attendance Record Access Control Turnstile

RFID Card Barcode Ticket or Wristband Control Attendance Record Turnstile with Software System SDK
Attendance Record Turnstile with Software System SDK or Barcode Ticket or RFID Card or Wristband Control
Item NO. GAT-206
Cabinet dimension 1200 (L) x 280 (W) x 1000 (H) mm
Cabinet material 304 stainless steel (316 ss can be custom-made)
Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
Flap opening/closing time within 1 second
Drive Motor DC 24v bruch motor
Passage width 60cm
Movement type Single motor or dual-motor according to actual situation
Access mode single in/out or Bidirectional
Optimal flow rate 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down default 10s, can be changed to fit different demands
Working environment indoor/outdoor (with a tent over) -10℃~70℃
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 0 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 1
Flap Barrier Gate Features
1. LED Directional Sign
Option Description
a. without b. with
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 2 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 3
2. Top LCD Display Screen
Option Description
a. without b. with
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 4 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 5
3. Flap Wing Color Options
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 6 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 7
Packing & Shipping
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 8 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 9
Functions & Features
  • Unique two-way anti-reverse function
  • Programmable operating status via control board's built-in press plate
  • Anti-rushing function - channel automatically locks without gate signal
  • Power failure safety - channel automatically unlocks for fire safety compliance
  • Automatic reset function (1-60S adjustable, default 10S)
  • Compatible with access control, biometric, ticketing, and ESD test systems
  • Supports unidirectional or bidirectional personnel control
  • Remote management capability via computer
  • LED indicator lights
  • Customizable box length and design
  • Adjustable normally open/closed settings
Hot-selling Models
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 10 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 11
Company Information

Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience.

304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 12 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 13

Our main products include intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps and related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.

FAQ
1. Can you do OEM service?

We offer comprehensive OEM services including custom designs for size, material, LED indicators, and retail packaging. We can create designs based on your specific requirements.

2. Is your turnstile compatible with different access control systems?

Yes, our turnstiles work with RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software.

3. What is your warranty and after-sales service?

We provide 12-month quality guarantee with professional English-speaking support for sales and after-sales service.

4. What is your lead time?

Standard items: 5-15 working days depending on quantity. Custom items require 3-10 additional working days.

5. What payment terms do you accept?

We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.

6. How do you ship products?

Samples ship by air (3-5 days). Bulk orders ship by sea (7-60 days depending on destination).

Why Choose Us
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 14 304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record 15
Our Pre-sale & After-sale Service
  • Pre-sale: Detailed product consultation and requirements analysis
  • On-purchase: Production updates with photos and testing videos
  • After-sale: Installation guides, manuals, and instructional videos
  • OEM/ODM: Custom logo, size, color, and design services
  • Professional support: 16-hour response to inquiries
