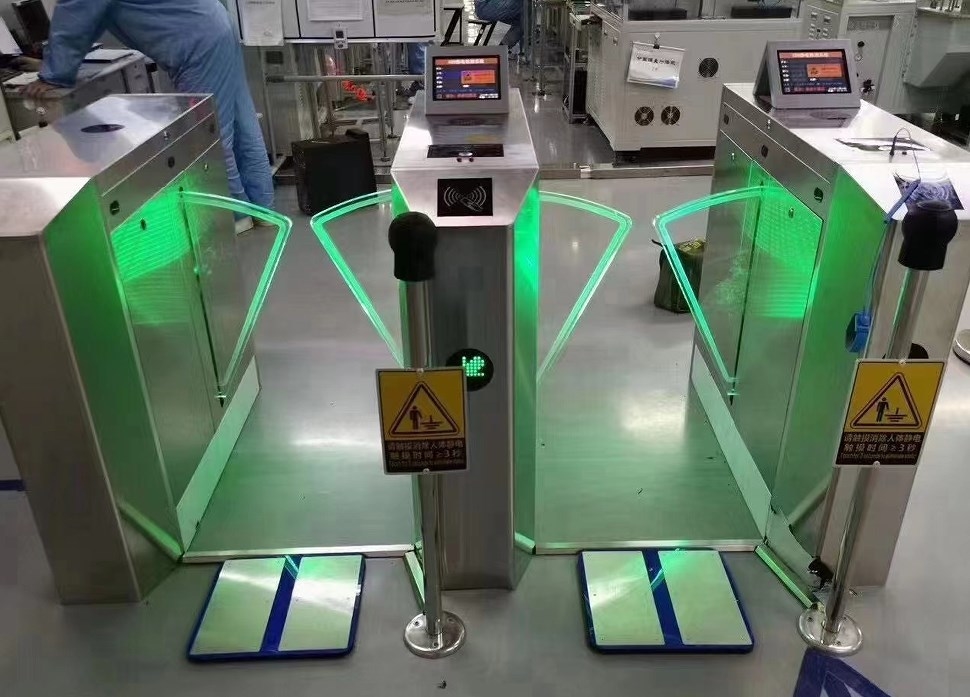

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

چین SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED گواهینامه ها
چین SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED گواهینامه ها
محصولات با کیفیت خوب، قیمت رقابتی و خدمات با کیفیت بالا.

—— الکس وونگ در فیلیپین

گلدانتل یک تامین کننده طلا است ، برای انجام خرید در زمان زیادی صرفه جویی کنید!

—— آصف خان در بحرین

چرخ چرخ شناسايي صورت مستاجران را تحت تاثیر قرار داد. با کارت های دسترسی به طور یکپارچه هماهنگ شد. مهندسان حتی در طول عید کار کردند.

—— احمد الفارسی در امارات متحده عربی

دروازه های دقیق با ربات های مونتاژ هماهنگ می شوند دروازه های چرخ دار آلمانی، سرعت چینی

—— کلارا مولر در آلمانی

سلام ، شارلین ، ما محموله را دریافت کرده ایم! مهندس ما موانع را آزمایش کرده است ، همه آنها بسیار خوب کار می کنند! حالا ، من می خواهم سفارش جدیدی ایجاد کنم!

—— مایکل فوسکو در ایالات متحده

چت IM آنلاین در حال حاضر

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

تصویر بزرگ :  8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

جزئیات محصول:
محل منبع: گوانگدونگ، چین
نام تجاری: Goldantell
گواهی: CE certificate
Model Number: GAT-303
پرداخت:
مقدار حداقل تعداد سفارش: 1PC
قیمت: قابل مذاکره
جزئیات بسته بندی: ابتدا در کارتن بسته بندی شده و سپس با جعبه چوبی صادراتی برای بسته بندی بیرونی تقویت شده است
زمان تحویل: 7 روز کاری پس از دریافت پرداخت شما
شرایط پرداخت: T/T ، Western Union ، LC ، PayPal
قابلیت ارائه: 2000 عدد در ماه
توضیحات محصول جزئیات
ابعاد: L1200/1400XW280XH1000MM مواد: فولاد ضد زنگ 304، (یا 316 سفارشی)
سرعت حمل و نقل: 25 تا 30 نفر در دقیقه ODM/OEM: آرم سفارشی ، اندازه سفارشی ، طراحی سفارشی
منبع برق: 110 تا 240 ولت (AC) مسیر: یک طرفه، دو جهته قابل تنظیم
عرض گذر: <600 میلی متر Working environment: Indoor / Outdoor ( Shelter),indoor
تضمین: 12 ماه Usage: Factory,Office,Hotel,Library,Metro Station,ect.

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband



Introduction Of ESD Turnstile Gate System

1. Excetp esd system,the gate can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).

2. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.

3. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.

4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.

5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

6. Turnstile system Can equip higher configuration for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.



Feature & Function Of ESD Turnstile Gate System

-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)



Special Function Of ESD Turnstile Gate System

1. counter: which records the pass times.

2. Coin or Token collector;

3. Card collector.



Technology parameter Of ESD Turnstile Gate System
Optimal flow rate 30 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension 1200(L)* 280(W)* 1000(H)MM
Open type push button/ access control
Passing direction single in/out or Bidirectional
Working temperature -15°C +75°C
communication with computer standard RS485, TCP/IP
Reset time after break down default 10s,can be changed to fit different demands



Display Of ESD Turnstile Gate System

Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

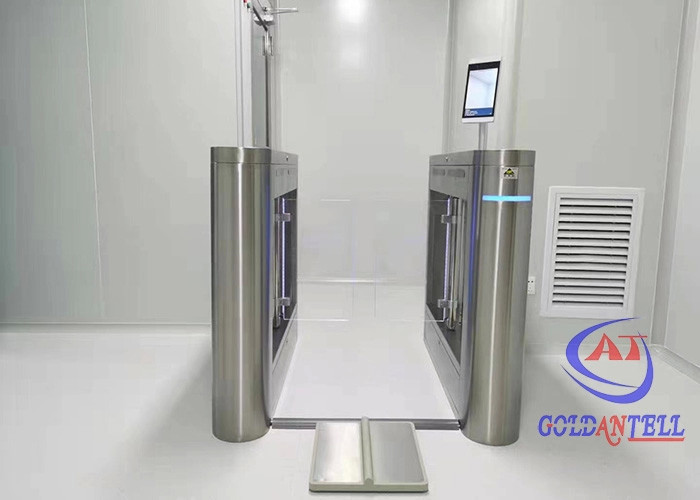

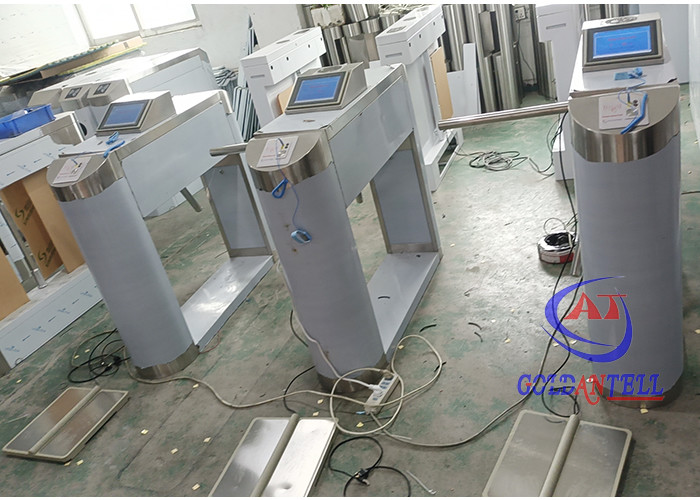

Design Of ESD Turnstile Gate System

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 08 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 18 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 28 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 3

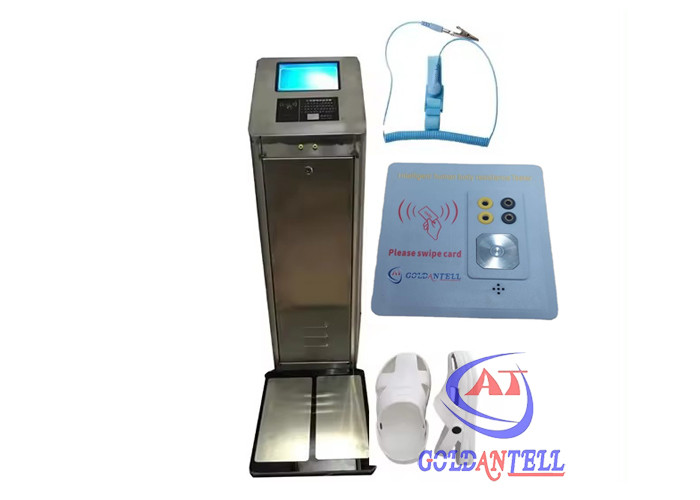

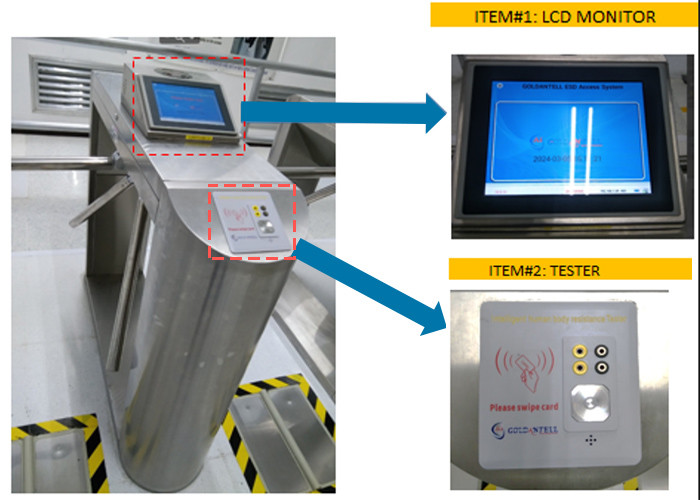

ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from

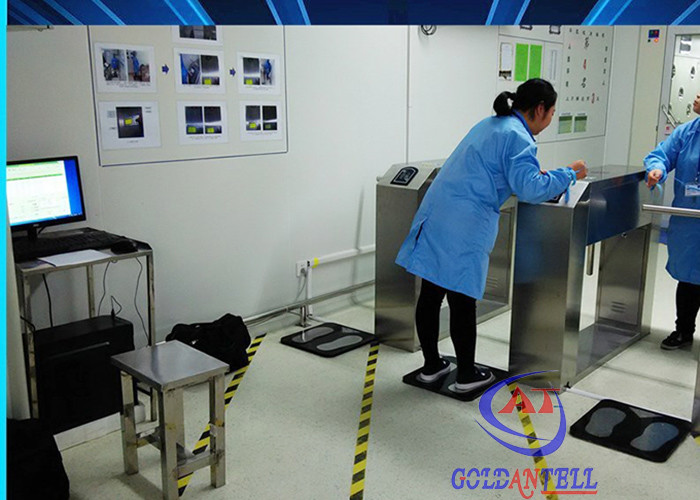

① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements.



FAQ Of Turnstile System

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.





Why Choose Our ESD System Turnstile Gates?
- Custom Solutions – Tailored to your security and design needs.
- 24/7 Support – Installation, maintenance, and troubleshooting.
- Competitive Pricing – Cost-effective without compromising quality.

Contact us today for a free consultation.



This version is clean, professional, and ready for direct use in brochures, websites, or presentations. Let me know if you need any further refinements.
